ECI
Weighing Indicator
Description

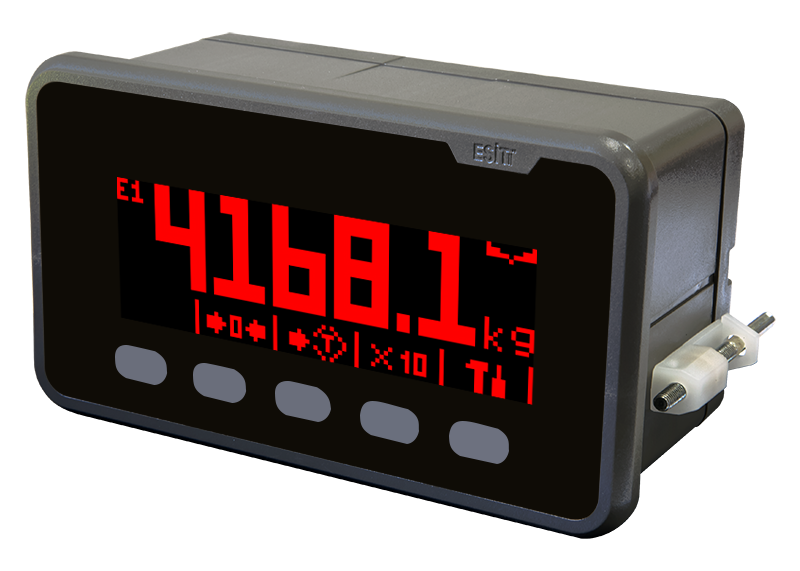

With its updated hardware, bright screen and software structure; New ESİT ECI indicator presents functionality, performance and ease of use significantly higher than industrial standards. Panel type ESİT ECI indicates the weighing process clearly, via its various warnings and graphics on IP65 enclosure-rated front panel touch screen and new bright graphic screen. With a standard mounted USB port; ESİT ECI offers free firmware update, backup and reporting functions.
Calibration

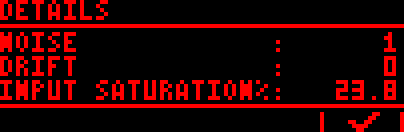

With the standard feature of “Calibration Doctor”, ESIT ECI indicator allows users to calibrate systems with simple steps, while calibration quality is inspected. Therefore wrong or incomplete calibration is prevented. Furthermore calibration can either be made with standardized weights, digitally via input values or via load cell mV input. Since a backup can be taken of calibration values to the main board of the indicator; calibration values cane be restored in case of a fault.
gResolver Special Filtering
ESIT ECI Weighing Indicator includes gResolver filtering software, an ESIT design. gResolver Special Filtering software filters all damaging vibration effects on weighing operations, enabling both sensitive and fast weighing.
Features
- New bright graphic display (4.5’’) and capacitive touchpad
- Adaptive, indexed menu system
- Galvanic isolated communication docks, Internal thermometer
- Easy connection with connectors (Solder-free)
- USB reporting / update / backup /calibration
- Easy calibration (mV, factory, coefficient, digital )
- Multi language option
- Esit gResolver superior multi-frequency vibration filtering technology
- Intelligent plug and play type option cards and modular expansion
- Internal temperature
- Service menu (self-diagnostic) Printer Support
- Printer output
- Besides load cell connection in standard configuration USB serialcommunication and external display output
- Weighing program
- 1600 Hz measurement / 800 Hz data output rate
- Possibility to move calibration information between different devices
Options
-
Communication Modules
- RS232&RS485/RS422 Serial Communication Card (Modbus)
- Profinet IO Communication Card
- Ethernet/IP Module (Modbus TCP)
- Profibus Module (DP Slave)
- Modbus TCP Communication Card
-
Input-Output Modules
- Built-in 4-Relay Card
- Analog 4-20 mA/0-10V output (16 bit)
-
Expansion Modules
- EsRelay Connection Module
- Binary Output(1+19 bit)
Technicial Specifications
Specifications;
| Sensitivity | |||
| Accuracy class (OIML approved) | 10000d (III) | ||
| Input sensitivity | 0.5uV/d | ||
| Sensitivity | % 0.0015 FS | ||
| Zero and gain stability | 2 ppm/°C | ||
| A/D converter | 24bit Sigma-Delta | ||
| Digital filter | gResolver (Intelligent Adaptive FIR filter) | ||
| Reading frequency | 6.25-800 Hz | ||
| Load Cell | |||
| Number of Loadcells allowed | (10 pieces 350 Ω) or (32 pieces 1100 Ω) | ||
| Analog input range | (-25mV with +25mV) or (-1.6V with +1.6V) | ||
| Excitation voltage | 10V DC | ||
| Enviroment | |||
| Operating temperature range (OIML approved) | -10°C +40°C | ||
| Storage temperature range | -20°C +70°C | ||
| Operating voltage and power | 12-24 VDC, 5W | ||
| Operator handling and Display | |||
| Keyboard | 5 Touch key, special function according to situation | ||
| Weight Display | 4.5“ Bright Graphics Display | ||
| Function Display | Gross, net, stable, zero, unit (g, kg, t,lb, lt, mV/V, m3) | ||
| Program Display | Weighing Program | ||
| Housing | |||
| Material and protection class | Impact-resistant plastic (PC), IP54 (Front Panel IP65) | ||
| Weight | 0.36 kg (Standard) | ||
| Package weight and dimensions | 0.55 kg (Standard) - 18x12.5x11cm | ||
| Communication |
|
||
| Serial communication output |
|
||
| Printer output |
|
||
| Binary (BCD) output |
|
||
| Remote Display Output |
|
||
| Digital input / output |
|
||
| Analog output |
|
||
| Internal Relay |
|
||
* BCD and EXP modul options can not be used simultaneously.
