ECI DIGITAL
Digital Load Cell Weighing Indicator
Description

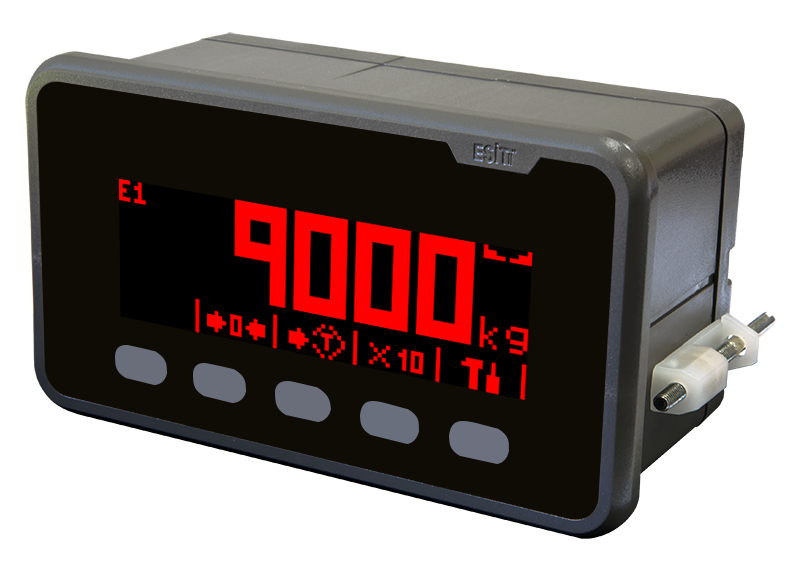

New ESİT ECI Digital Weighing Indicator is designed for weighing with digital load cells and to be used in vehicle scales. There are two different models of ECI Digital: designed for Modbus or Canbus output digital load cells. Although ESİT ECI is designed for panel use, there are optional casings for colon or desktop use as well. ESİT ECI indicates the weighing process clearly, via its various warnings and graphics on IP65 enclosure-rated front panel touch screen and new bright graphic screen. With a standard mounted USB port; ESİT ECI offers free firmware update, backup and reporting functions.
Features
- Weighing program with digital load cells
- Communication with load cells via Modbus or Canbus protocols
- Indicator, platform scale or vehicle scale modes

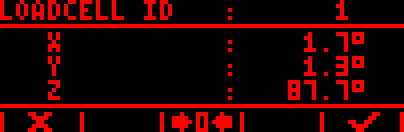

- Angle correction function when used with ESIT CAD series digital load cells
- Faulty load cell warning

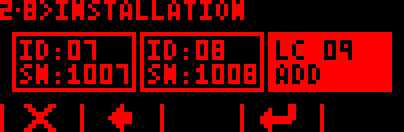

- Automatic weighing platform corner adjustment
- Galvanic isolated communication docks, Internal thermometer
- New bright graphic display (4.5’’) and capacitive touchpad
- Adaptive, indexed menu system
- Easy connection with connectors (Solder-free)
- USB reporting / update / backup
- Possibility to move calibration information between different devices
- Multi language option
- Intelligent plug and play type option cards and modular expansion
- Internal temperature
- Service menu (self-diagnostic) Printer Support
- Printer output
- Besides load cell connection in standard configuration USB serialcommunication and external display output
Options
-
Communication Modules
- RS232&RS485/RS422 Serial Communication Card (Modbus)
- Profinet IO Communication Card
- Ethernet/IP Module (Modbus TCP)
- Profibus Module (DP Slave)
- Modbus TCP Communication Card
-
Input-Output Modules
- Built-in 4-Relay Card
- Analog 4-20 mA/0-10V output (16 bit)
-
Expansion Modules
- Binary Output(1+19 bit)
- EsRelay Connection Module
Technicial Specifications
Technical Specifications;
| Load Cell | |||
| Reading Speed |
|
||
| A mount of load cells can be fed | 16 pcs | ||
| Excitation voltage | 12V | ||
| Environment | |||
| Operating temperature range (OIML Approved) | -10°C +40°C | ||
| Storing temperature range | -20°C +70°C | ||
| Operating voltage and power | 12-24 VDC, 5W | ||
| Operator Handling and Display | |||
| Keyboard | 5 Touch key, special function according to situation | ||
| Weight Display | 4.5“ Bright Graphics Display | ||
| Function Display | Gross, net, stable, zero, unit (g, kg, t,lb, lt, mV/V, m3) | ||
| Program Display | Weighing Program | ||
| Housing | |||
| Material and protection class | Impact-resistant plastic (PC), IP54 (Front Panel IP65) | ||
| Weight | 0.36 kg (Standard) | ||
| Package weight and dimensions | 0.55 kg (Standard) - 18x12.5x11cm | ||
| Communication |
|
||
| Serial communication output |
|
||
| Printer output |
|
||
| Binary (BCD Output) |
|
||
| Remote Display output |
|
||
| Dijital input / output* |
|
||
| Analog Output |
|
||
| Built-in Relay |
|
||
* BCD and EXP modules cannot be used together.
